مشخصات:
نوع کالا: موتور DC
نوع موتور: استپر موتور 2 فاز
ولتاژ نامی (ولت): 4/2
وزن (گرم): 1200
قطر بیرونی شفت (میلیمتر): 1.5
قطر بدنه: 8 میلی متر
طول بدنه: 8 میلی متر
قطر چرخ دندنه: 2.2 میلی متر
طول شفت: 4 میلی متر
Description:

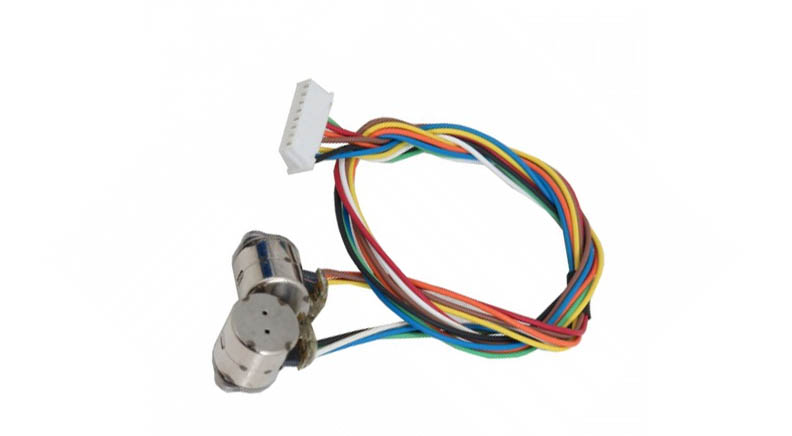

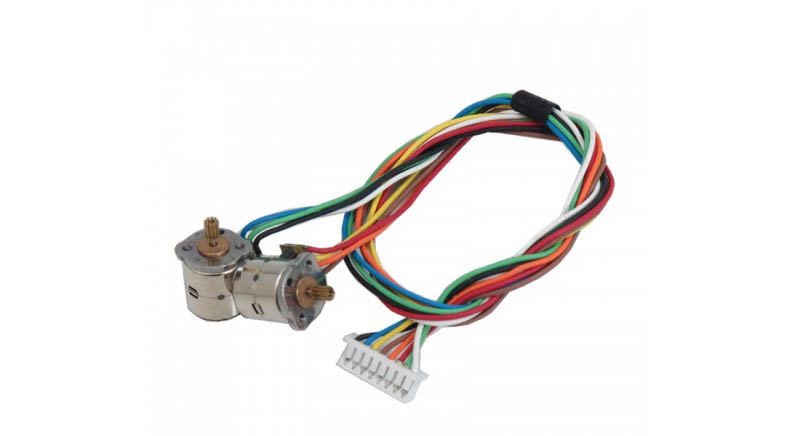

The 8mm micro stepping motor with very exquisite workmanship is widely used in various small home appliances and digital products such as digital cameras. And it is a relatively new product recently, which is more suitable for new digital cameras and other digital products. Even the gears of the motors look very precise.
Features:
Stepper motor diameter: 8 mm
Height: 8.2 mm
Type: Two-phase four-wire
Long axis (blue: A +, black: A-. Red: B +, white: B-)
Short axis (purple: A +, yellow: B-. Orange: B +, green: B-)
Phase resistance: 39.2 Europe
6 V Short circuit current: 0.14 A
(Estimated phase voltage is 5V-6V, drive current is about 0.12A)
Output shaft: 1.5 mm
Output shaft length: long axis 4mm, short axis 3.5mm.
Copper gear outer diameter: 2.2 mm (9 teeth, 0.2 modulus)
Weight: 6 grams
.
